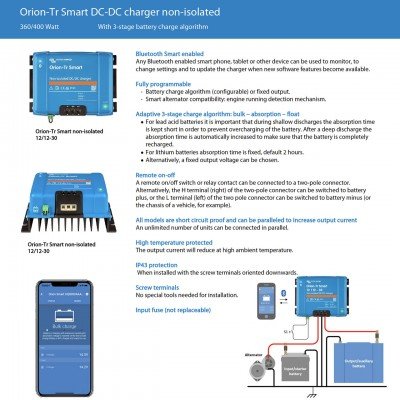

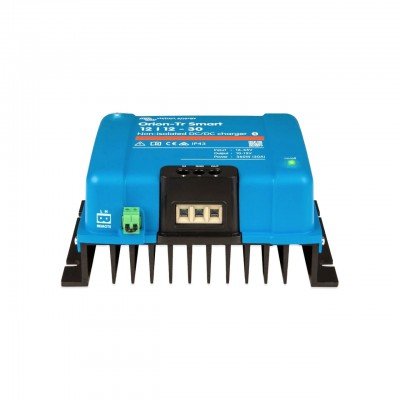

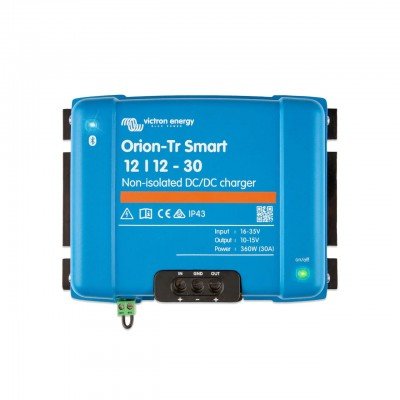

Victron Orion-TR Smart DC Charger Non-Insulated 12-12-30A ORI121236140

Bluetooth Smart enabled

• Any Bluetooth-enabled smartphone, tablet or other device can be used to monitor, to
  change settings and update the charger when new software features become available.
  • Instant Readout: The Victron Connect App can display key data, including warnings and
  alarms, on the Device list page without the need to connect to the product.

Fully programmable

• Battery charge algorithm (configurable) or fixed output.
  • Smart alternator compatibility: engine running detection mechanism.
  Adaptive 3-stage charge algorithm: bulk – absorption – float
  • For lead acid batteries it is important that during shallow discharges the absorption time is
  kept short to prevent overcharging of the battery. After a deep discharge the
  absorption time is automatically increased to make sure that the battery is completely
  recharged.
  • For lithium batteries absorption time is fixed, default 2 hours.
  • Alternatively, a fixed output voltage can be chosen.

Remote on/off

A remote on/off switch or relay contact can be connected to a two-pole connector.

Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or

the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of

a vehicle, for example).

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.

High temperature protected

The output current will reduce at high ambient temperatures.

IP43 protection

When installed with the screw terminals oriented downward.
