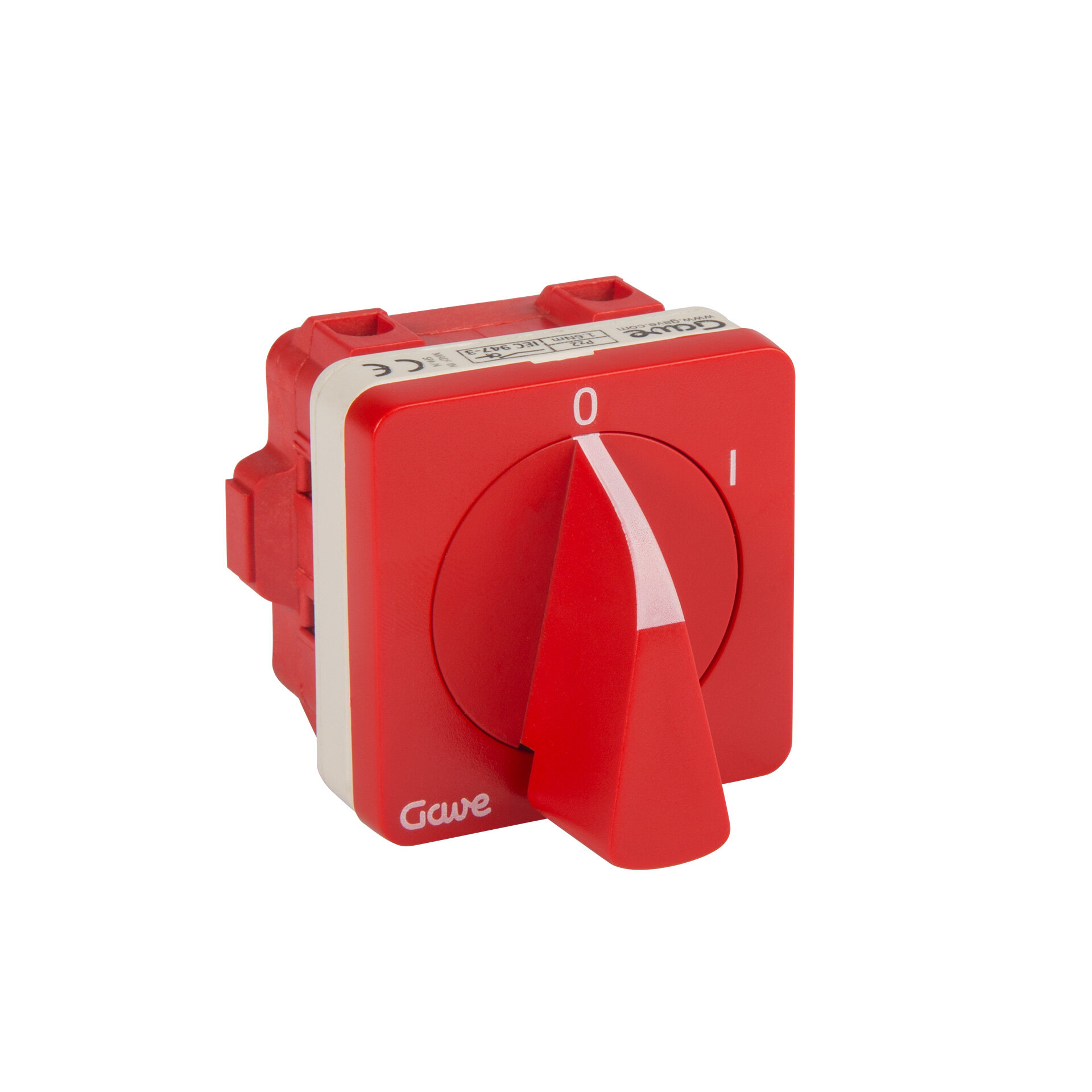

| Code | 009A-5501000 |
| EAN | 8430892101103 |
Dimensions
Logistic Data
| Customs code | 85365080 |
| Etim Code | EC000216 |
| Packing units | 1 |
| Product gross weight (kg) | 0.1 |
| Package height (mm) | 82 |
| Package width (mm) | 50 |
| Package length (mm) | 50 |
Technical data
| Nr. Poles | 1 |
| Operational rating (Ie) | 16 A |
| Air thermal rating (Ith) | 20 A |
| Cable cross-section (AWG) | 10 |
| Wire section rigid | 2,5 – 6 mm2 |
| Wire section flexible | 2,5 – 6 mm2 |
| Tightening torque | 1,6 Nm |
| Connection screws | M4 |
| Terminal | |
| Max. fuse protection (gG/aM) | 25/25 A (415 V)
25/25 A (500 V) |
| Conditional shortcircuit current (Icc) | 6 kA (415 V)
6 kA (500 V) |
| Insulating voltage (V~) | 690 |
| Insulating voltage (V…) | 400 |
| Dummy AC-21A | 5,5 kW (3×230 V)
11 kW (3×415 V) 15 kW (3×500 V) |
| Mixed load AC-22A | 4 kW (3×230 V)
7,5 kW (3×415 V) 11 kW (3×500 V) |
| Motor load AC-23A | 3 kW (3×230 V)
5,5 kW (3×415 V) 7,5 kW (3×500 V) |
| Magnetic circuit loads AC-11 | 1000 VA (3×110 V)
2000 VA (3×230 V) 3500 VA (3×430 V) |
| UL Electric characteristics | 1,5 hp 1-fase (110-120 V)
2 hp 1-fase (220-240 V) 2 hp 3-fase (220-240 V) 2 hp 3-fase (380-415 V) 3 hp 3-fase (440-480 V) 5 hp 3-fase (550-600 V) |
| Standard | IEC 60947-3
UL 508 |
| Handle type | Directo |
