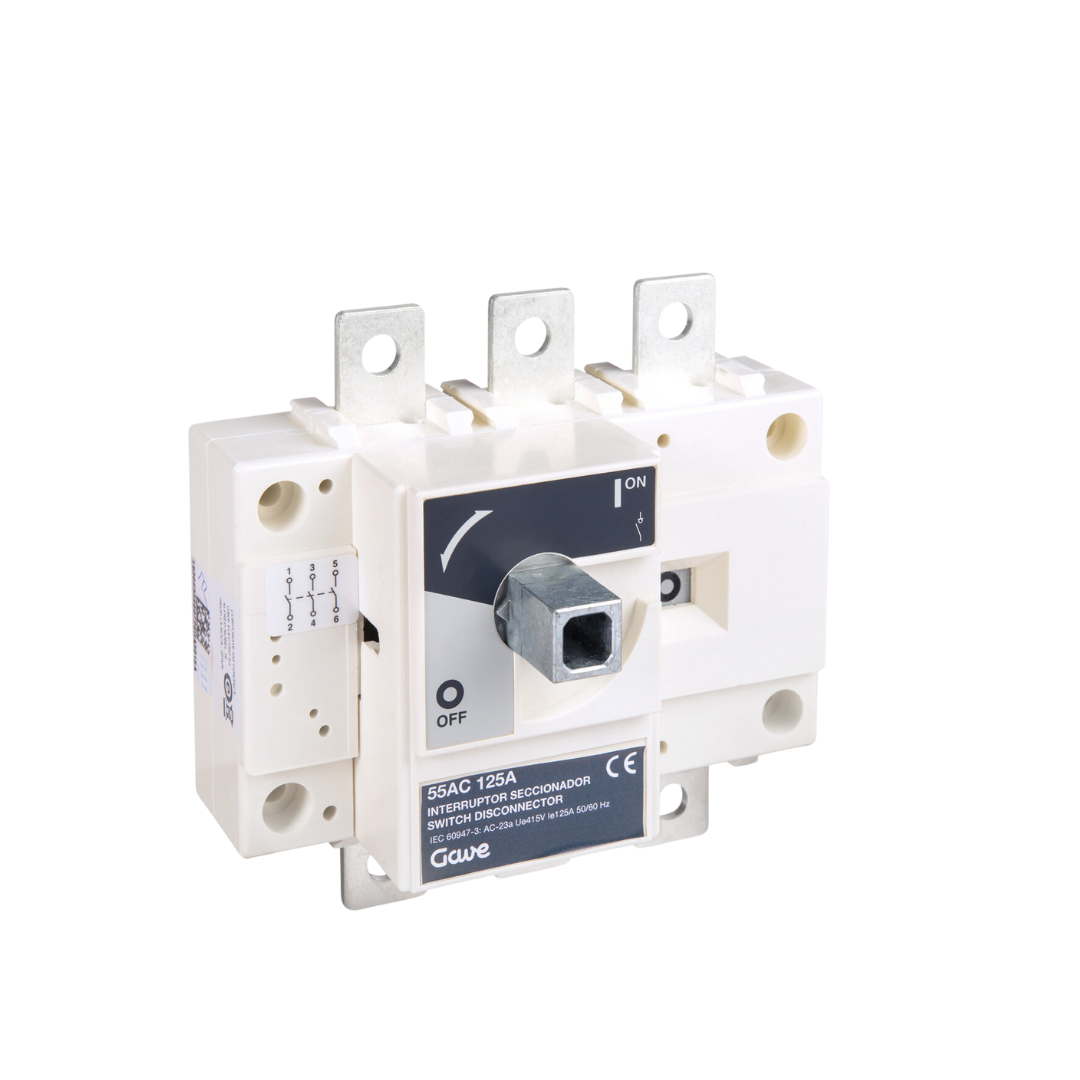

ON-OFF LOAD BREAK SWITCH 3P x 125A
| Code | 01755AC3012 |
| EAN | 8430892284523 |
| Nr. Poles | 3 |
| Air thermal rating (Ith) | 125 A |
| Impulse voltage (Uimp) | 8 kV |
| Minium Cu cable cross-section | 35 mm2 |
| Maximum Cu cable cross-section | 50 mm2 |
| Maximum Cu busbar width | 25 mm2 |
| Tightening torque | 9/- Nm |
| Prostpective shortcircuit current (rms) | 100 kA |
| Associated fuse rating | 125 A |
| Rated short-time withstand current 1s (Icw) | 7 kA |
| Standard | IEC 60947-3 |
